446,25 €446,25 € + VAT
Sold out
Sold out

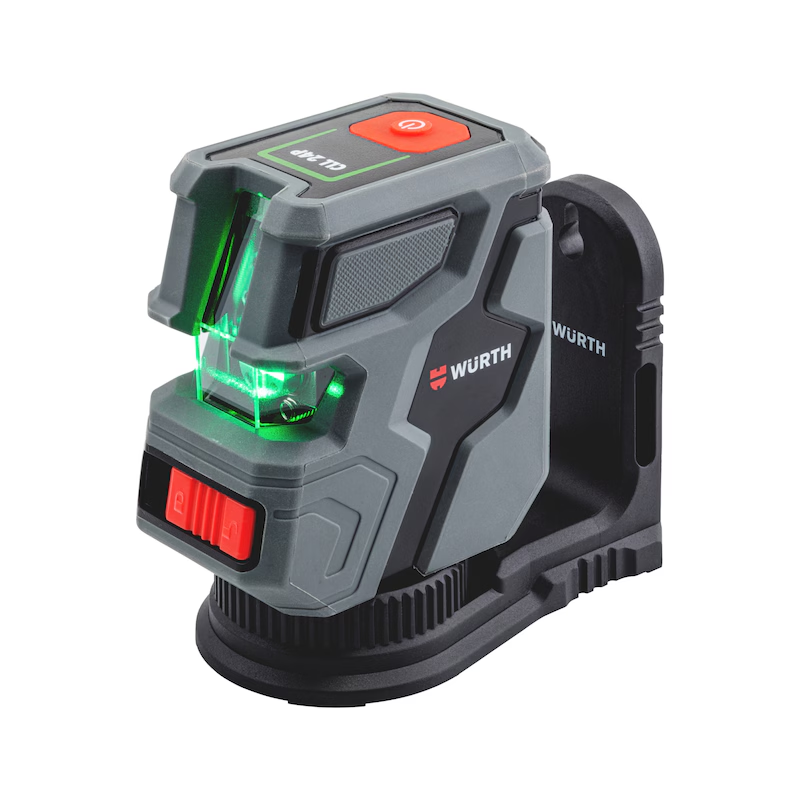

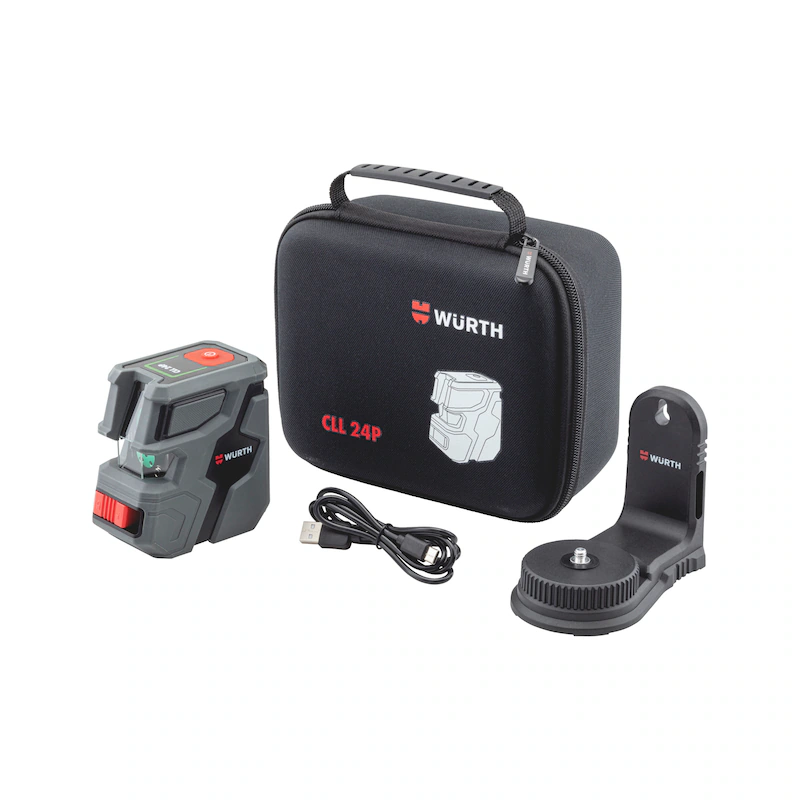

Cross line laser CLL 24P
Code 5709 300 024
Spatial positioning accuracy +/- 3 mm at 10 m
Spatial damping type Magnetic damping compensator
Spatial adjustment range ± 3°
Visibility up to 15 m
Working area with handheld receiver up to 40 m
Number of laser lines 2
Laser category 2
Laser type 515 nm
Laser color green
Operating temperature -10°C ... +40°C
Storage temperature -20 °C ... +70 °C
Charging temperature +5°C ... +30°C
Protection type IP54
BATTERY 2200 mAh Li-Ion
Operating time with 1/2 diodes 8 h / 4 h
Charging time ca. 4 h
Dimensions M x W x H 96 x 54 x 98 mm
Weight 350 g
For your safety
Before the first use of the device
read the instructions for use and
act on them. Keep them
these instructions for use for future reference
use or for the next owner of the device. Ο
the operator must have carefully read and
understand the instructions for use, before using it
device.
Warning!
Risk of injury
of the eyes
-Laser radiation! Do not look into the beam!
-Make sure no one is blinded.
Foreseeable misuse
The device may not be used,:
-in areas with harmful gases, oils, acids, radiation
etc.
